Natural Colour Enhancer

Enhanced colour performance and faithful reproduction, bumps your viewing experience up to the next level.

Dolby Audio

Movies, TV shows, sports, music—the entertainment you love is even better when you hear it in Dolby Audio.

Full Connectivity

Expand your TV possibilities with HDMI ports, USB slots and WIFI.

Specifications:

• Resolution (DPI):1920 x 1080
• Display Technology: LCD / LED lit
• User Interface (UI): Linux
• Active display area dimension: 940,896 x 529,254mm
• Screen size (rounded to nearest integer): 108 cm, 43 "
• Backlight source: LED Matrix
• Display Colour depth: 8bit+FRC
• Image refresh frequency: 60Hz
• Smooth motion rate: 120
• Maximum brightness of white: 300cd / m2
• Native contrast ratio: 1200 : 1
• Viewing Angle (Horiz / Vert): 178 / 178
• Response Time: 8 ms
• Processor / Cores: MSD3663LSAT – SW
• Colour (Front bezel, rear, stand): Black / Black / Black
• Compact packaging: Yes
• Maximum time delay Power On to sound an image: sec

Hotel Lock

• Protected Hotel lock submenu: Fixed code
• Clone function for programs, sound and image settings: No
• Sub-menu lock, including tuning lock: Yes
• Keyboard lock: No
• Maximum volume lock: Yes
• Power on volume: Yes
• Power on, apply default sound/image settings: Yes
• Power on source selection: Yes
• Power on RF channel selection: Yes
• Power on mode (On / Standby / Last): Yes / Yes / Yes
• Inputs access (Enable / Disable): Yes

USB Media Player

• Personal Video Recorder: Yes
• Time Shift: Yes
• DTV Recording: EPG scheduling, Start from Standby
• DMP – Digital media player content: Music, Photos, Video
• DMP File allocation table: FAT, FAT32, NTFS
• PVR File allocation table: FAT, FAT32, NTFS

Image processing

• Zoom function settings: 16:9, 4:3, Auto

Analogue TV Reception

• Colour-Sound systems in VHF band: PAL B
• Colour-Sound systems in UHF band: PAL B
• Stereo sound decoder (Analogue): NICAM
• Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX (Analogue): No / No / No
• Subtitles (Analogue): Yes

Digital TV Reception

• Television system: DVB-T, DVB-T2
• Video decoder (MPEG2 / MPEG 4): MPEG2, MPEG4 AC3
• Surround sound decoder: Yes
• Subtitles: Yes

Eco & Power Supply

• Power Consumption (Stand-by): ≤0.5W
• Voltage: 100 – 240V
• Frequency: 50 – 60Hz

Safety and Regulation

• CB: Yes
• EMC: Yes

Accessories

• Remote Batteries: AAA x 2
• User Manual: Yes
• Quick Start Page: Yes

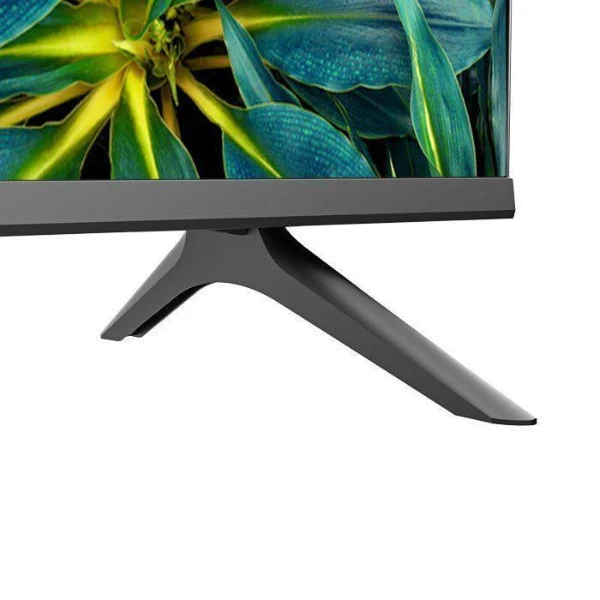

• Stand area: 801 × 182mm
• Wall mount dimensions: 200 x 200 mm
• Wall mount, screw thread: M6mm
• VESA compliance: Yes
• Detachable power cord: No
• Power cord length: 155 cm
• Remote controller (Technology / Part number): IR / ER-22601A

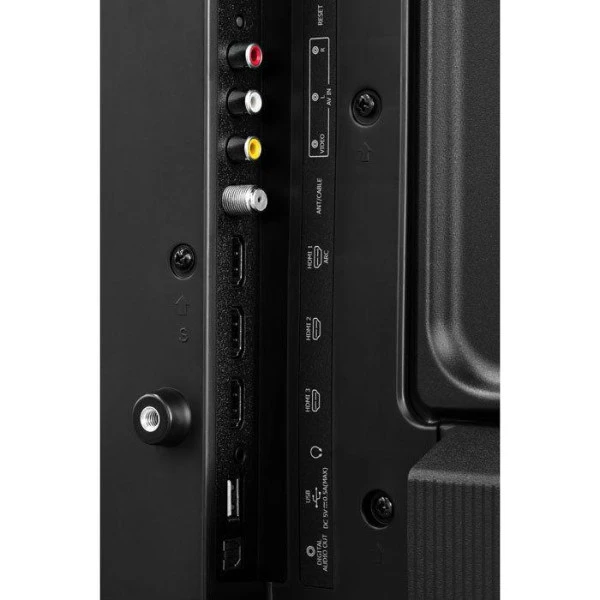

Connectivity

• HDMI inputs: 2
• HDMI1: ARC, HDMI type 1.4 with HDCP version 1.4
• HDMI2: HDMI type 1.4 with HDCP version 1.4
• Radio frequency input: 1
• AV Input: 1
• AV Output: 0
• USB (2.0): 2
• USB (3.0): 0
• S/PDIF Output: 1
• Earphone jack: 1
• Ethernet RJ45 port :0

Other Features

• On / Off timer: Yes
• Power off if no signal: Yes
• Sleep timer: Yes
• Program lock: Yes
• User Interface: (UI) Linux
• Software version OSD indication: Yes

Sound

• Audio Power Output (p/ch): 7W
• Number of speakers (Tweeter / Midrange / Woofer): 0 / 1 / 0
• Automatic volume level (AVL): Yes
• Audio equalizer: Yes
• Dolby Digital: Yes

Weight & Dimensions

• Carton box dimensions (W x H x D): 1070 × 135 × 652mm
• Dimensions with stand (W x H x D): 955 × 606 × 182mm
• Dimensions without stand (W x H x D): 955 × 558 × 87mm
• Net weight (with stand / without stand): 6.4 / 6.5kg
